Washer Fluid-Level Sensor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out.

When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Disconnect the connector.

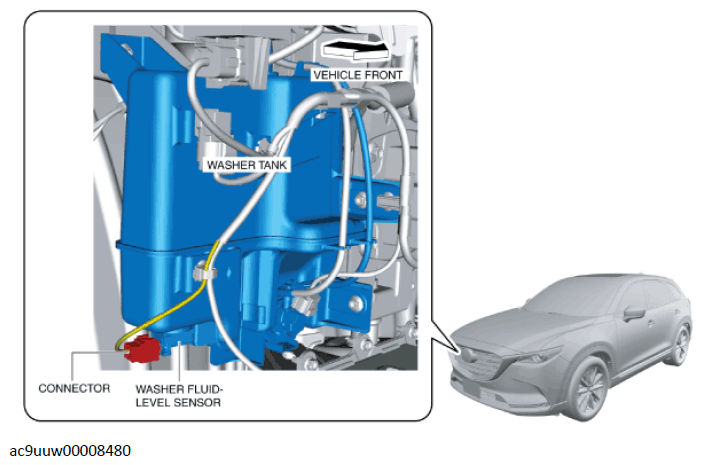

Fig 1: Washer Fluid-Level Sensor Connector Location
Courtesy of MAZDA MOTORS CORP.
Remove the washer fluid-level sensor.

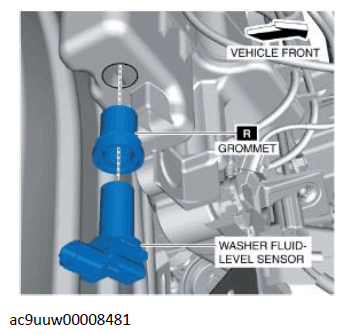

Fig 2: Removing Washer Fluid-Level Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Install in the reverse order of removal.
