Windshield Wiper Motor And Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
    CAUTION:
    • Always apply protective tape to the windshield end. If the windshield wiper motor and link contacts the windshield, it could damage the windshield.
  4. Apply protective tape to the area where the windshield end interferes with the windshield wiper motor and link as shown in the figure.

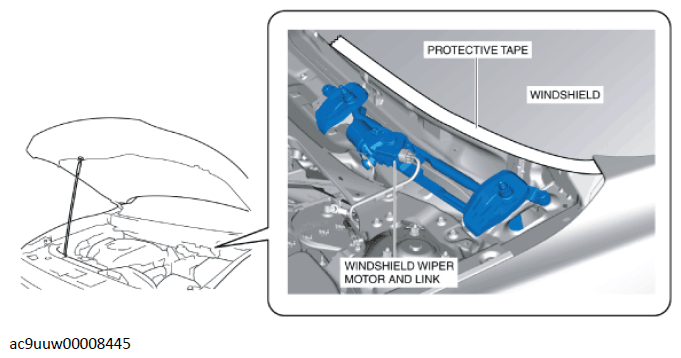

    Fig 1: Applying Protective Tape
    G11433000Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.

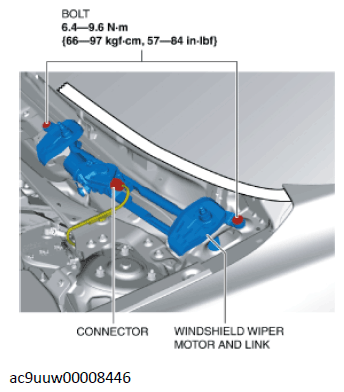

    Fig 2: Locating Windshield Wiper Motor And Link Connector
    G11433001Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts.
  7. Move the windshield wiper motor and link in the direction of the arrow shown in the figure and detach it from the bracket.

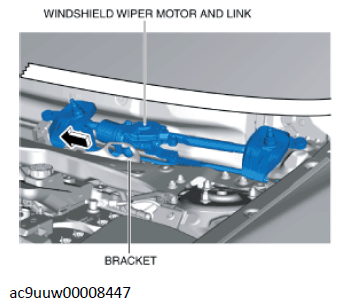

    Fig 3: Moving Windshield Wiper Motor And Link
    G11433002Courtesy of MAZDA MOTORS CORP.
  8. Remove the windshield wiper motor and link.

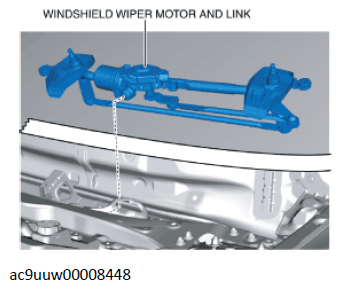

    Fig 4: Removing Windshield Wiper Motor And Link
    G11433003Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If the vise is tightened with excessive force, it could deform or damage the windshield wiper link.

      When securing the windshield wiper link in the vise, be careful not to deform or damage the windshield wiper link.

    • Protect the windshield wiper link by placing a rag in the vise when securing it in the vise. Otherwise, it could damage the area where the vise is secured.
  9. Secure the position of the windshield wiper link shown in the figure in a vise.

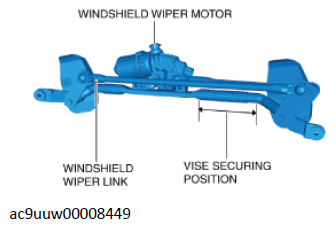

    Fig 5: Locating Gap Between Windshield Wiper Motor And Windshield Wiper Link
    G11433004Courtesy of MAZDA MOTORS CORP.
  10. Insert a tape-wrapped flathead screwdriver into the gap between the windshield wiper motor and the windshield wiper link.

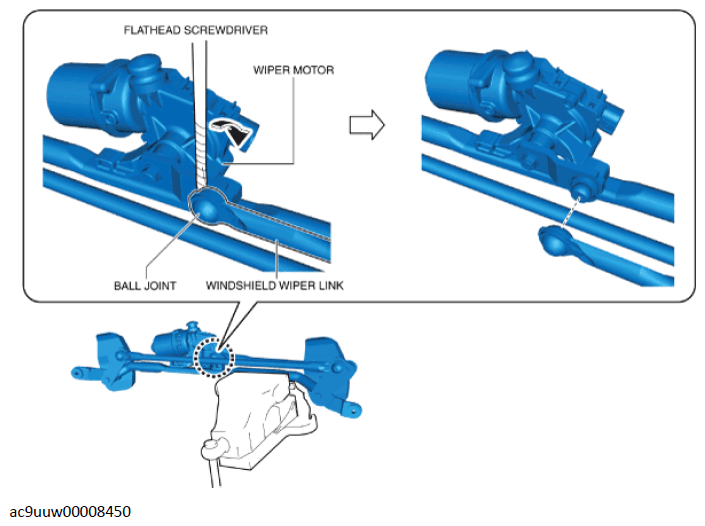

    Fig 6: Moving Tape-Wrapped Flathead Screwdriver
    G11433005Courtesy of MAZDA MOTORS CORP.
  11. Move the flathead screwdriver in the direction of the arrow shown in the figure and detach the windshield wiper motor from the windshield wiper link ball joint. (See BALL JOINT ASSEMBLY NOTE .)
  12. Remove the screws.

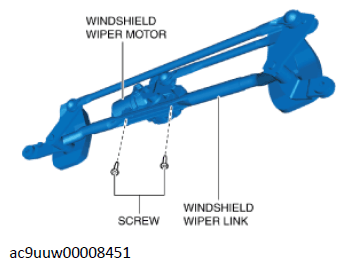

    Fig 7: Removing Windshield Wiper Motor Screws
    G11433006Courtesy of MAZDA MOTORS CORP.
  13. Remove the windshield wiper motor from the windshield wiper link.
  14. Install in the reverse order of removal.
