Section 83 (On-Board Diagnostic - Auto Leveling Control Module)
›
On-Board Diagnostic Wiring Diagram [Auto Leveling Control Module]
On-Board Diagnostic Wiring Diagram [Auto Leveling Control Module]
WARNING:
This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

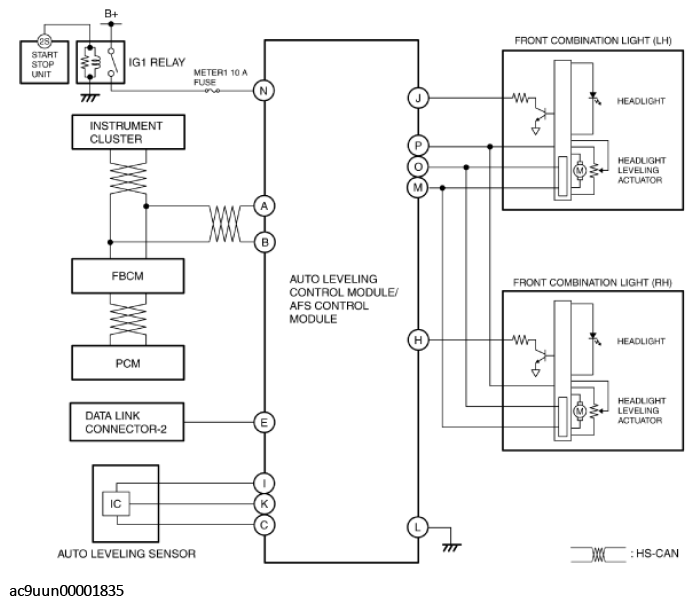

Fig 1: Auto Leveling Control Module On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
