Section 91 (Intake-Air System)
›
Intake-Air System Removal/Installation
›
Evaporative Hose Installation Note
Evaporative Hose Installation Note
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
Install the evaporative hose as shown in the figure.

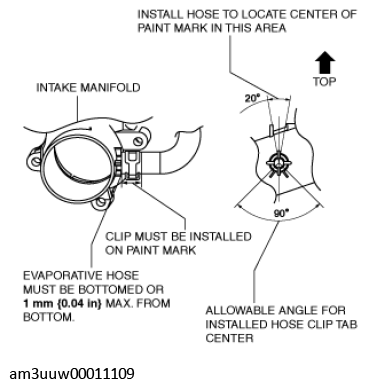

Fig 1: Installing Evaporative Hose
Courtesy of MAZDA MOTORS CORP.
