Snap Ring Removal/Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove/install the snap ring using snap ring pliers.

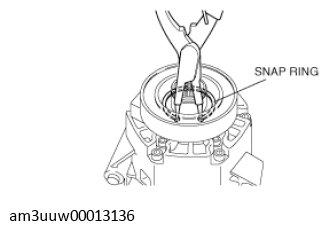

Fig 1: Installing Snap Ring Using Snap Ring Pliers

Courtesy of MAZDA MOTORS CORP.
