Plug Hole Plate Removal/Installation: Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Press the plug hole plate in the order shown in the figure to insert the adapter to the rubber on the engine side.

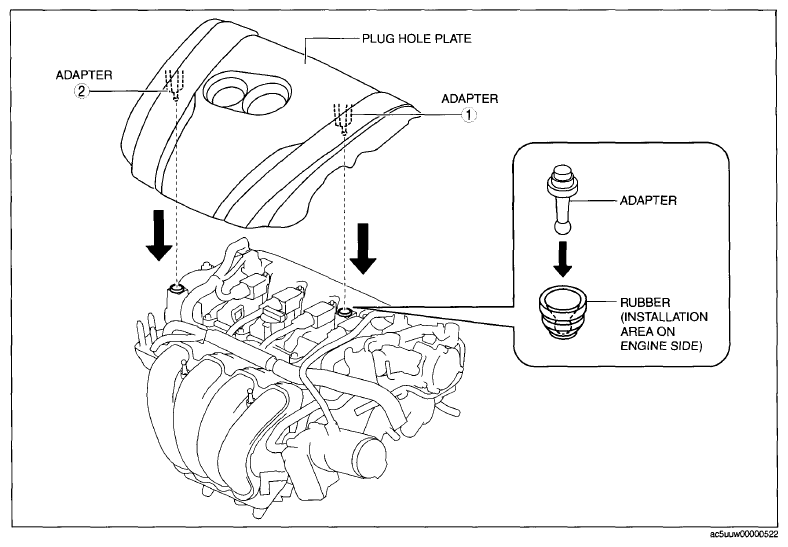

Fig 1: Inserting Adapter To Rubber On Engine Side
Courtesy of MAZDA MOTORS CORP.
Press the front part of the plug hole plate at the same time to insert the rubber to the adapter on the engine side.

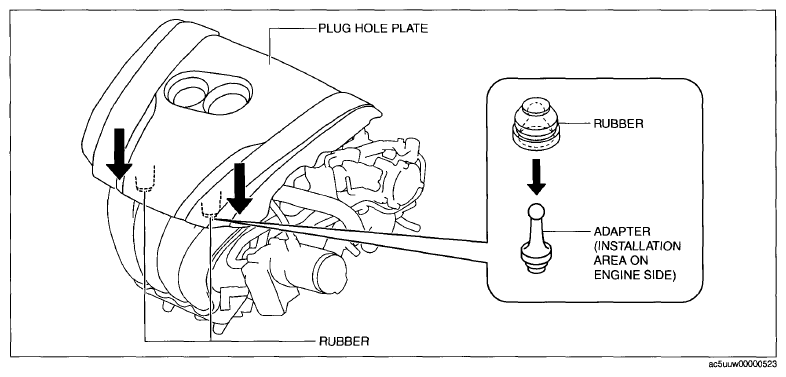

Fig 2: Pressing Front Part Of Plug Hole Plate

Courtesy of MAZDA MOTORS CORP.
