With 8 Screws
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.

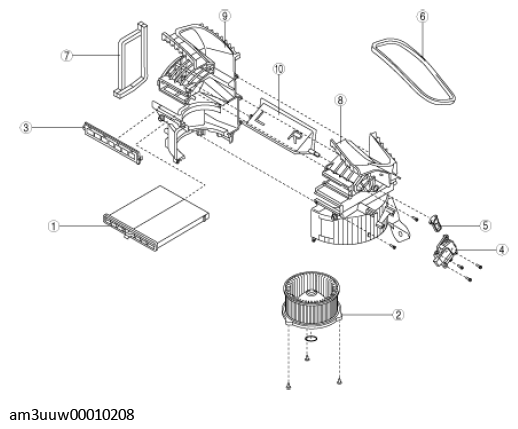

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Air filter |
| 2 |
Blower motor |
| 3 |
Cover |
| 4 |
Air intake actuator |
| 5 |
Air intake link |
| 6 |
Polyurethane (1) |
| 7 |
Polyurethane (2) |
| 8 |
Blower case (1) |
| 9 |
Blower case (2) |
| 10 |
Air intake door |
- Assemble in the reverse order of disassembly.
