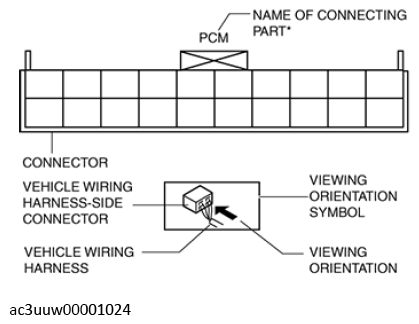

Vehicle harness-side connector

• The viewing orientation for vehicle wiring harness-side connectors is from the wiring harness side.

Courtesy of MAZDA MOTORS CORP.

*: With the wiring harness-side connector, connecting part names of all connectors are displayed in the figure.

Other

• When it is necessary to show the terminal side of the vehicle wiring harness-side connectors, such as the following connectors, the viewing orientation is from the terminal side.

Courtesy of MAZDA MOTORS CORP.

• Main fuse block and the main fuse block relays
• Data link connector
• Check connector
• Relay box
