Structural View (Heater System)

Courtesy of MAZDA MOTORS CORP.

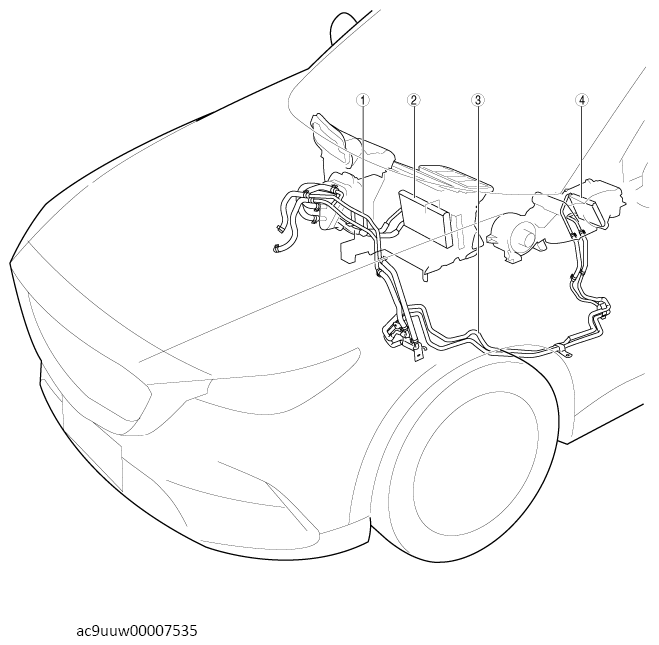

PART DESCRIPTION

1	Heater pipe and heater hose (front) (See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION .)
2	Front heater core (See FRONT HEATER CORE INSPECTION .)
3	Heater pipe and heater hose (rear) (See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION .)
4	Rear heater core (See REAR HEATER CORE INSPECTION .)
