Front Blower Motor Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)

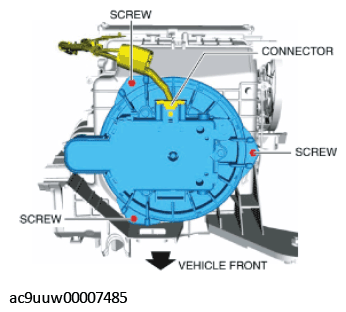

  3. Disconnect the connector.
    G11433504Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.

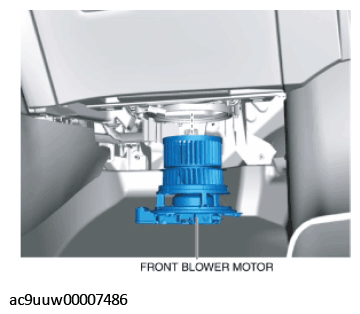

  5. Remove the front blower motor.
    G11433505Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
