Driver's side

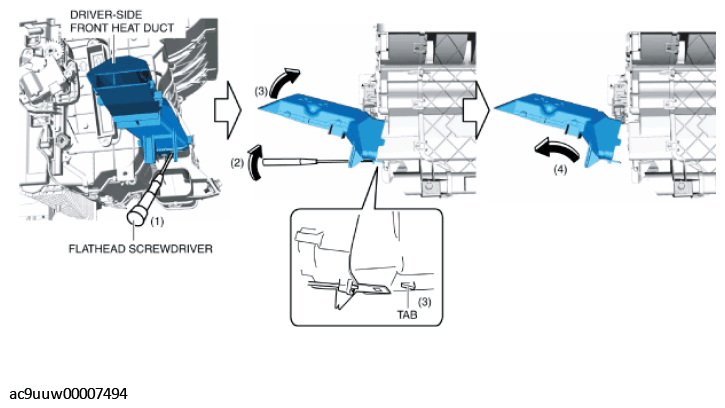

- Insert a flat head screwdriver in the position shown in the figure (1), lift it up in the direction of the arrow (2).
- Detach the tab while lifting up the driver-side front heat duct in the direction of the arrow (3).
- Remove the driver-side front heat duct (4).
- Install in the reverse order of removal.
