Front Lower Arm Removal/Installation: Notes

Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal. (See Suspension Link Installation Note .)

When replacing the front lower arm, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

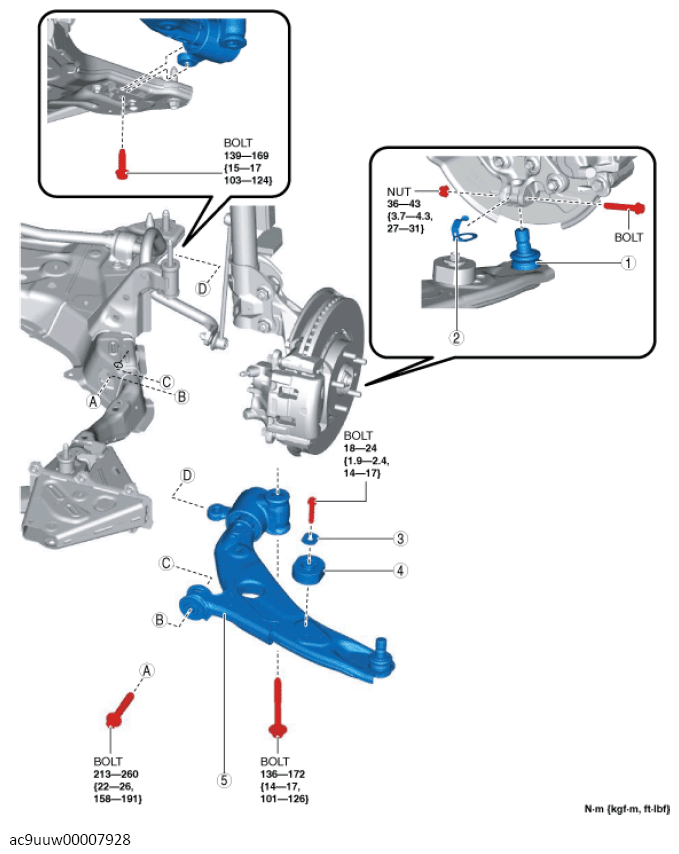

Fig 1: Front Lower Arm Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Front lower arm ball joint (See Front Lower Arm Ball Joint Installation Note .)
2	Spacer
3	Washer
4	Dynamic damper (See Dynamic Damper Installation Note .)
5	Front lower arm
