On-Board Diagnostic Wiring Diagram [Power Liftgate (PLG) Control Module]

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

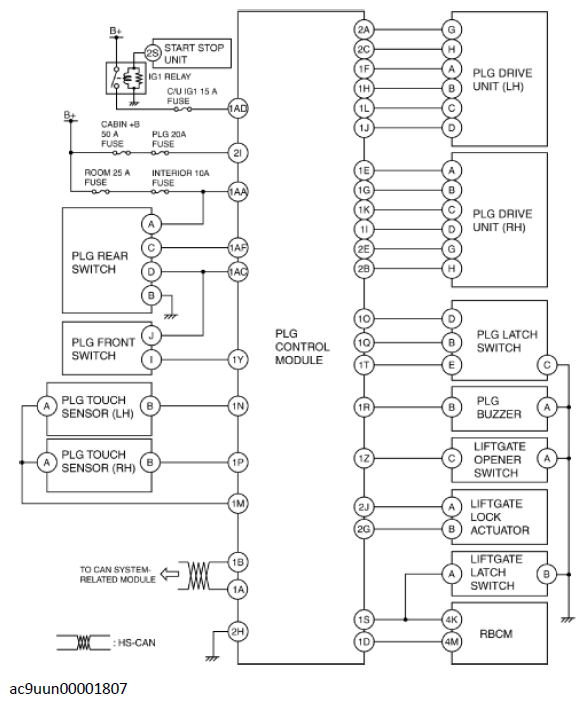

Fig 1: On-Board Diagnostic (Power Liftgate Control Module) Wiring Diagram

Courtesy of MAZDA MOTORS CORP.
