Air Cleaner Cover Installation Note

  1. Install the air cleaner cover as shown in the figure.
    G11274501Courtesy of MAZDA MOTORS CORP.

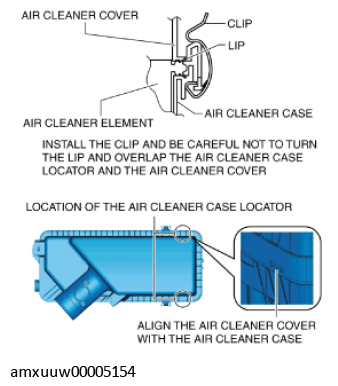

  2. Secure the air cleaner cover and the air cleaner case with the clip.
    G11274502Courtesy of MAZDA MOTORS CORP.
