Joint Pipe Installation Note

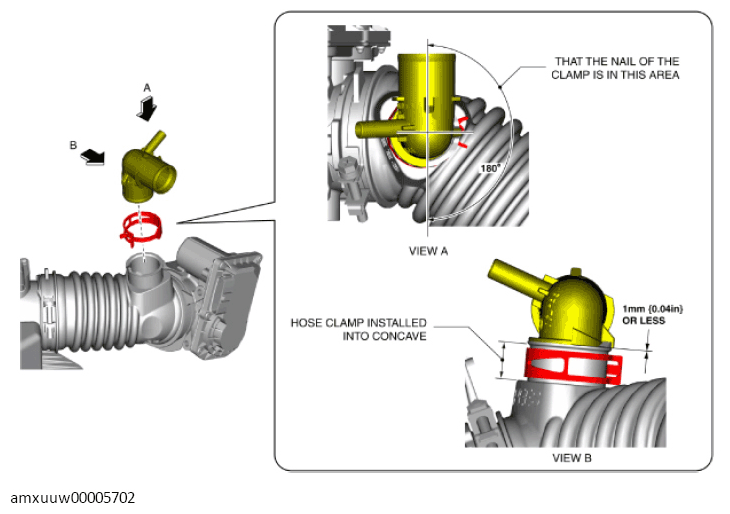

Install the joint pipe as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
