Fuel Pump Unit Disassembly/Assembly

Disassemble in the order indicated in the table.

Assemble in the reverse order of disassembly.

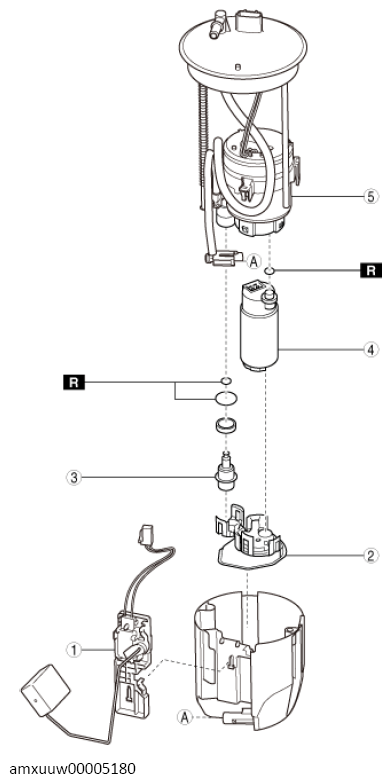

G13488214

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel gauge sender unit
2	Fuel filter (low-pressure)
3	Pressure regulator
4	Fuel pump
5	Fuel filter (high-pressure)
