Fuel-filler Pipe Installation Note

  1. Temporarily tighten bolt A.

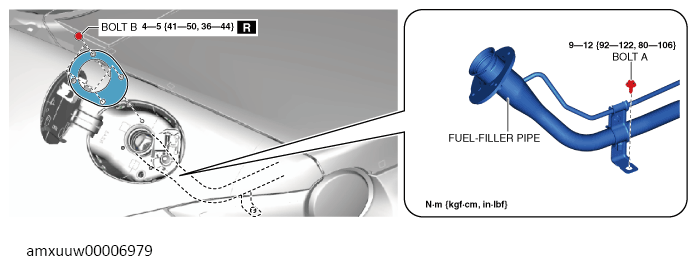

    Fig 1: Fuel-Filler Pipe Bolts With Torque Specification
    G13488246Courtesy of MAZDA MOTORS CORP.
  2. Completely tighten bolt B.
  3. Completely tighten bolt A.
