Total Toe-in Adjustment

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the installation nut of the lower lateral link adjusting cam bolt.

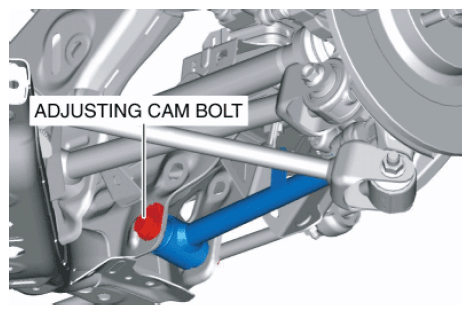

Fig 1: Identifying Adjusting Cam Bolt (Toe-In Adjustment)
Courtesy of MAZDA MOTORS CORP.

Rotate the adjusting cam bolt in either direction to adjust the toe-in.

Specification

3.0±4 mm {0.12±0.2 in} (0°17'±20')

	Left wheel	Right wheel
Toe-in direction	Counterclockwise	Clockwise
Toe-out direction	Clockwise	Counterclockwise

NOTE:

Refer to the following figure to adjust the angle of the adjusting cam bolts in single increments.

LOWER LATERAL LINK ADJUSTING CAM BOLT ADJUSTMENT SPECIFICATION

Scale	Link movement (mm)	Toe change amount (angle)
1	1.8 mm {0.071 in}	0°30'
2	3.5 mm {0.14 in}	0°57'
3	4.9 mm {0.19 in}	1°21'
4	6.1 mm {0.24 in}	1°39'
5	6.8 mm {0.27 in}	1°50'
6	7.0 mm {0.28 in}	1°54'

Tighten the nut.
Tightening torque
- 85-103 N-m {8.7-10 kgf-m, 63-75 ft-lbf}
