Pre-inspection preparation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the brake pipe from the front brake hose (LH).

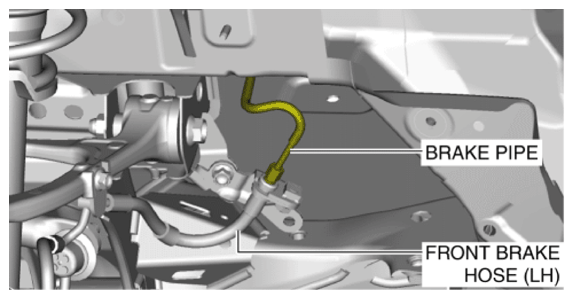

Fig 1: Identifying Brake Pipe And Front Brake Hose (LH)
Courtesy of MAZDA MOTORS CORP.
Install the SSTs to the brake pipe as shown in the figure.

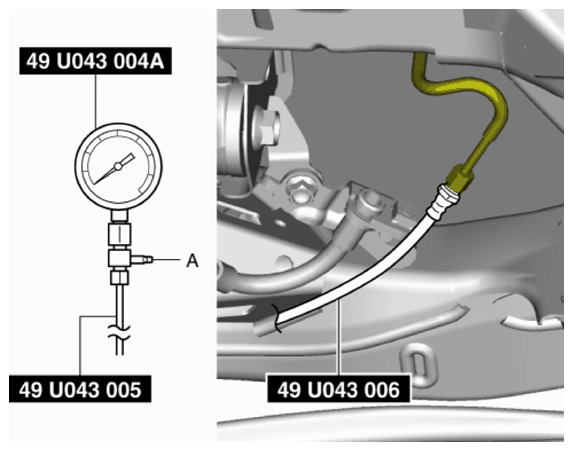

Fig 2: Installing SSTs To Brake Pipe
Courtesy of MAZDA MOTORS CORP.
Bleed the brake line and the SSTs of air. Bleed the air form the SSTs using bleeder screw A.
Install the pedal force gauge to the brake pedal.
Connect the vacuum gauge to the vacuum line.
