Water Outlet Component Removal Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the upper radiator hose.

Fig 1: Identifying Upper Radiator Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the heater hose.

Fig 2: Identifying Heater Hose
Courtesy of MAZDA MOTORS CORP.
Set the engine coolant temperature sensor No. 1 wiring harness aside using the following procedure:

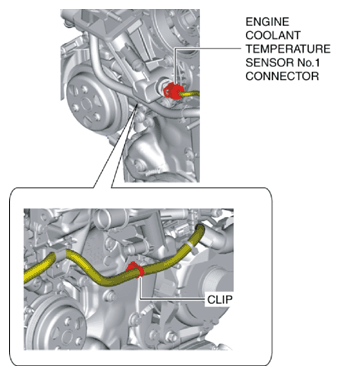

Fig 3: Identifying Engine Coolant Temperature Sensor Number 1 Connector And Clip
Courtesy of MAZDA MOTORS CORP.
1. Disconnect the engine coolant temperature sensor No. 1 connector.
2. Remove the clip and set the wiring harness aside.
Remove the water outlet component.

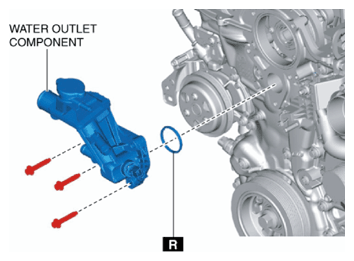

Fig 4: Identifying Water Outlet Component And Bolts

Courtesy of MAZDA MOTORS CORP.
