Washer Fluid-Level Sensor Inspection

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Turn the steering wheel to full right lock.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Lift up the vehicle.
Remove the front mudguard No. 2. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
Disconnect the connector.

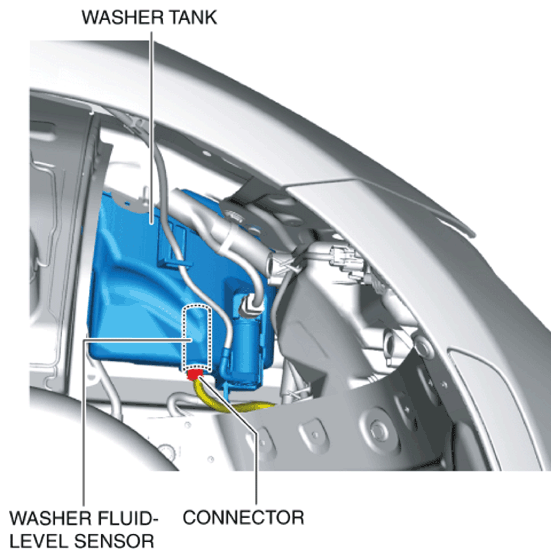

Fig 1: Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Verify that the continuity between the washer fluid-level sensor terminals is as indicated in the table.

Fig 2: Washer Fluid-Level Sensor Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig 3: Checking Continuity Between Washer Fluid-Level Sensor Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the washer fluid-level sensor. (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)
