Hood Latch Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
  3. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the body.

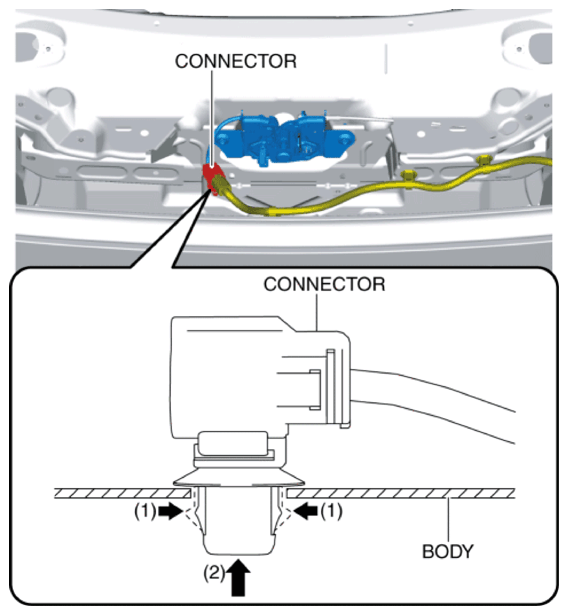

    Fig 1: Pressing Hood Latch Clip Tabs
    G10954269Courtesy of MAZDA MOTORS CORP.
  4. Remove the connector antenna from the body.
  5. Disconnect the connector.
  6. Disconnect the hood release cable.

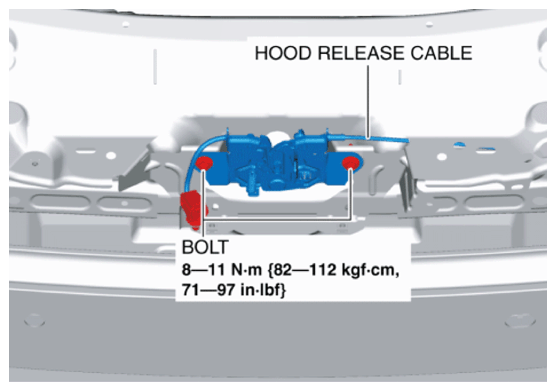

    Fig 2: Identifying Hood Release Cable Bolt With Torque Specifications
    G10954270Courtesy of MAZDA MOTORS CORP.
  7. Remove the bolts.
  8. Remove the hood latch. (See HOOD LATCH INSTALLATION NOTE .)
  9. Install in the reverse order of removal.
