Driver's Side

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Fully close the door glass.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Door trim (See DOOR TRIM REMOVAL/INSTALLATION .)
2. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)
3. Door key cylinder (See DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
4. Outer handle (See OUTER HANDLE REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

Fig 1: Request Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

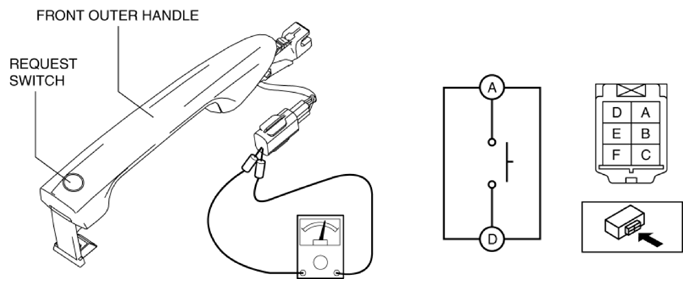

Fig 2: Checking Continuity Between Request Switch Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the outer handle. (See OUTER HANDLE REMOVAL/INSTALLATION .)
