Condenser Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the wind blocker. (See WIND BLOCKER REMOVAL/INSTALLATION .)
- Partially peel back the side shelf (LH) and rear package trim to a position where the condenser is visible. (See SIDE SHELF REMOVAL/INSTALLATION .) (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)

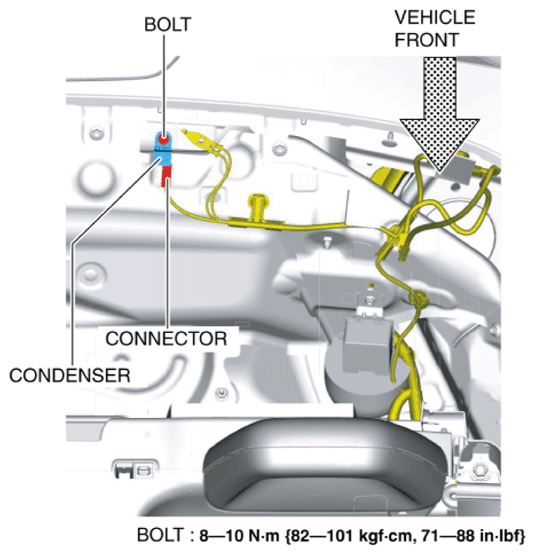

- Disconnect the connector.
- Remove the bolt.
- Remove the condenser.
- Install in the reverse order of removal.
