Troubleshooting Procedure

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

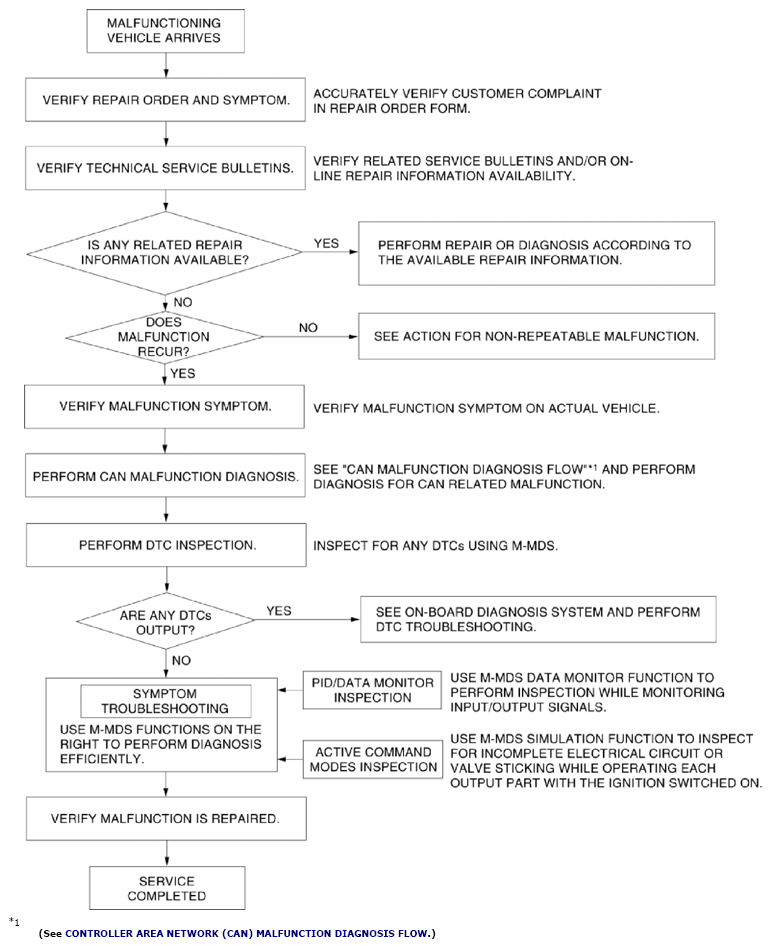

Fig 1: AFS Control Module Troubleshooting Procedure Flowchart
G10955202Courtesy of MAZDA MOTORS CORP.
