Front Turn Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Turn the steering wheel to the side where the bulb is to be removed until it locks.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Partially peel back the front mudguard No. 2. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

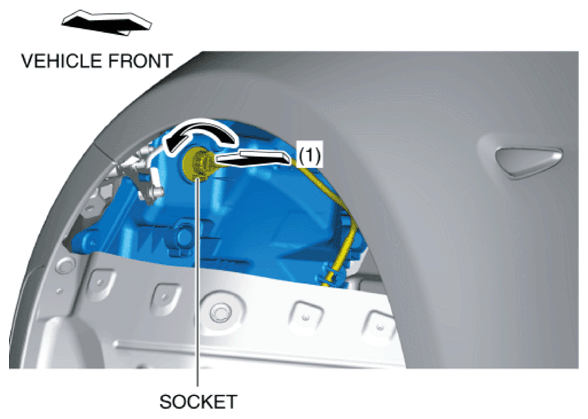

Fig 1: Turning Socket Counterclockwise
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).
Remove the front turn light bulb.

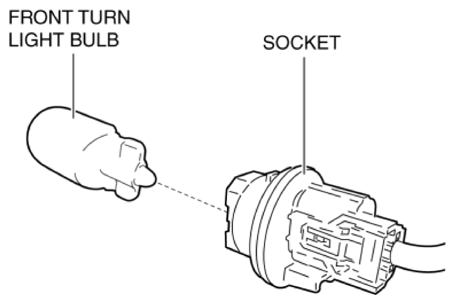

Fig 2: Removing Front Turn Light Bulb
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
