Indicator Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .) (2) Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)

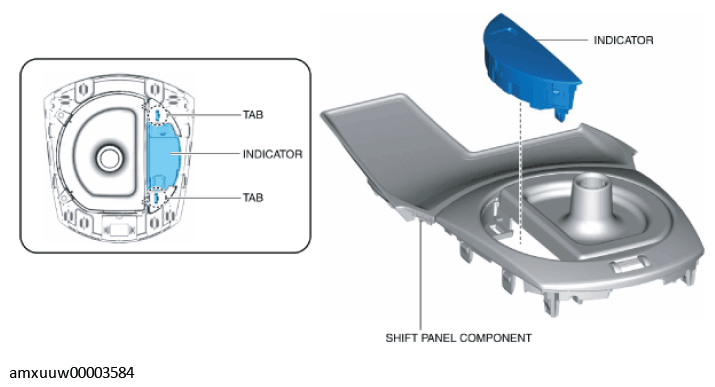

Detach tabs shown in the figure and remove the indicator.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
