Water Outlet Component Removal Note

  1. Disconnect the upper radiator hose.
    G11275882Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the heater hose.
    G11275883Courtesy of MAZDA MOTORS CORP.

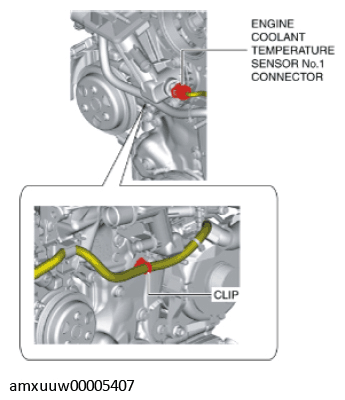

  3. Set the engine coolant temperature sensor No. 1 wiring harness aside using the following procedure:
    G11275884Courtesy of MAZDA MOTORS CORP.
    1. Disconnect the engine coolant temperature sensor No. 1 connector.
    2. Remove the clip and set the wiring harness aside.

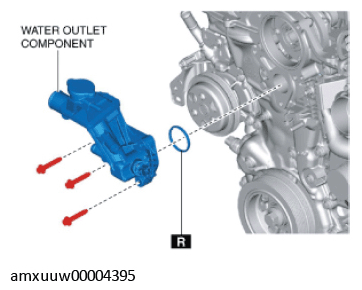

  4. Remove the water outlet component.
    G11275885Courtesy of MAZDA MOTORS CORP.
