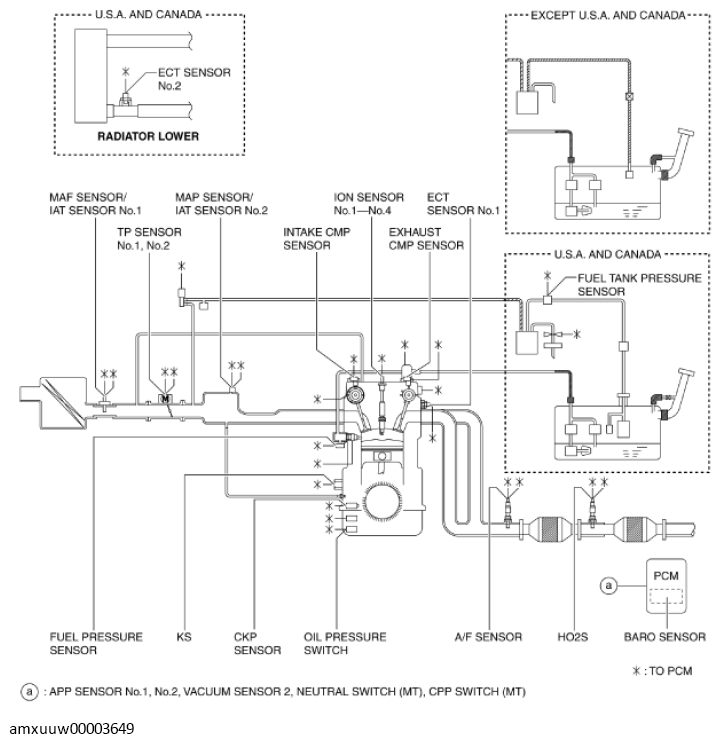

Control System Diagram
Control System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
