EPS CM Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Install the EPS CM so that the projecting part of the EPS CM (rotor) is engaged with the notch in the rubber.

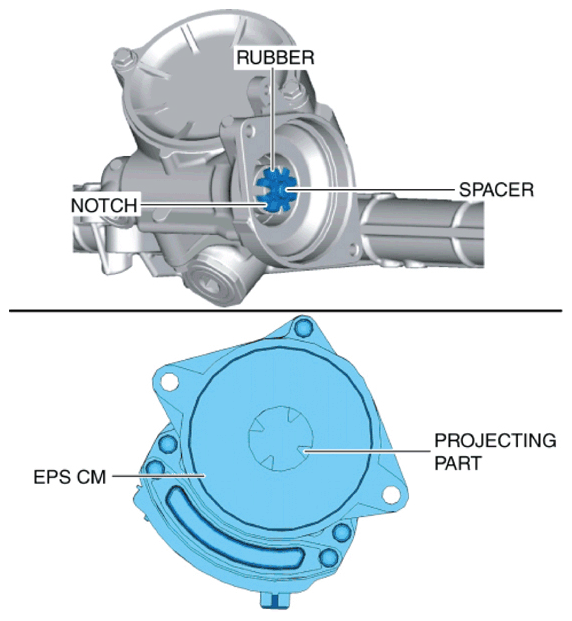

Fig 1: Installing EPS CM Projecting Part
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If the projecting part of the EPS CM (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS CM projection (rotor).
Tighten the bolts evenly.

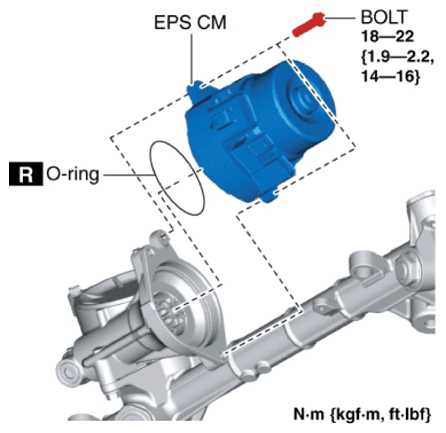

Fig 2: Installing EPS CM Bolts
Courtesy of MAZDA MOTORS CORP.
