Magnetic Clutch Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

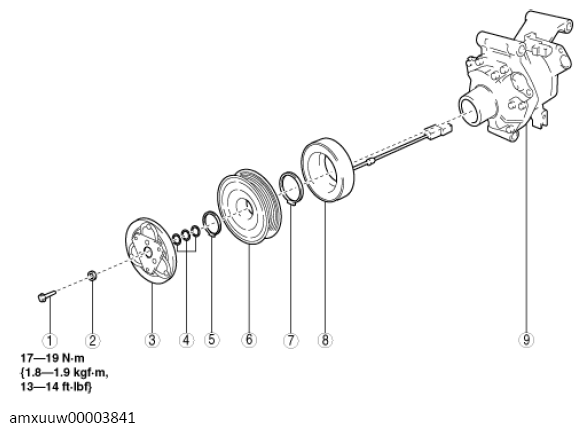

Fig 1: Magnetic Clutch Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
