Accessory Socket Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the accessory socket. (See ACCESSORY SOCKET REMOVAL/INSTALLATION .)

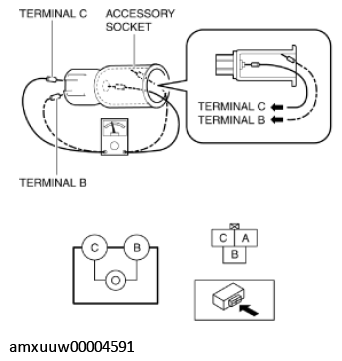

- Connect the tester probe to the position shown in the figure and verify that there is continuity between accessory socket terminal B and C.
- If it cannot be verified, replace the accessory socket. (See ACCESSORY SOCKET REMOVAL/INSTALLATION .)
