Center Display Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
Remove the bolts.

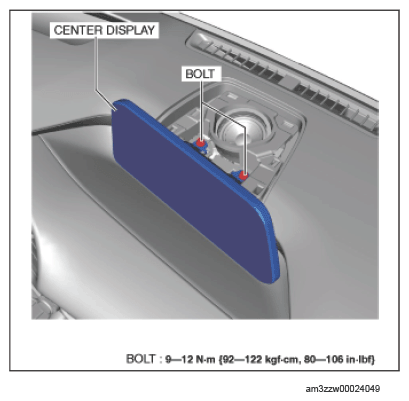

Fig 1: Center Display And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

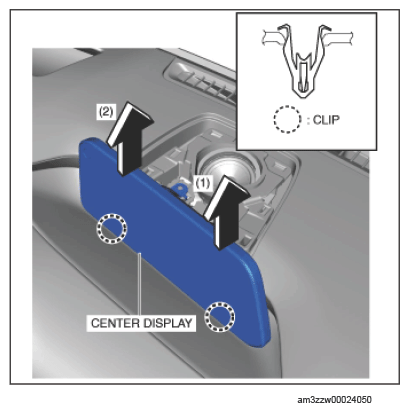

Pull the center display in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips.

Courtesy of MAZDA MOTORS CORP.

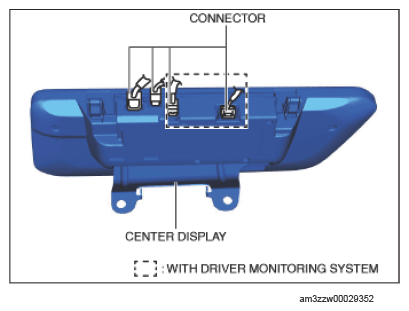

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
