Liftgate Adjustment

Courtesy of MAZDA MOTORS CORP.

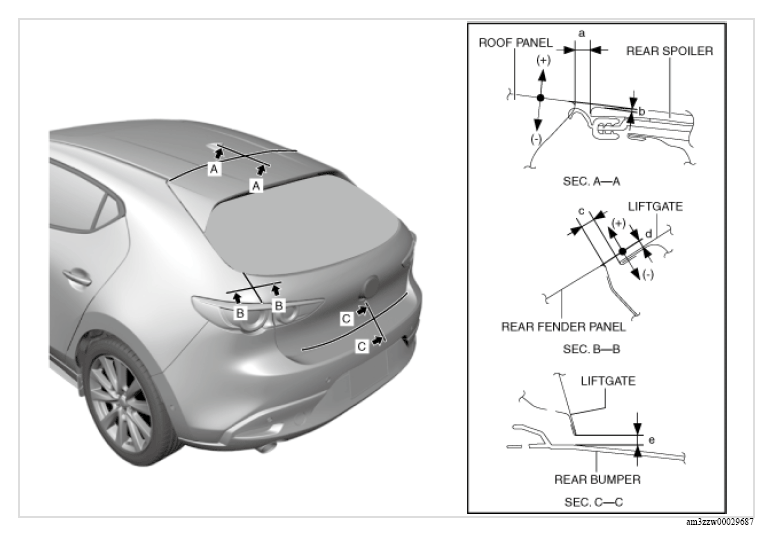

Standard clearance

1. 4.5-7.5 mm {0.18-0.29 in}
2. -2.5-0.5 mm {-0.09-0.01 in}
3. 3.5-5.5 mm {0.14-0.21 in}
4. -1.1-0.9 mm {-0.04-0.03 in}
5. 4.0-8.0 mm {0.16-0.31 in}

• If the measured value exceeds the standard clearance, adjust the liftgate using the following procedure:
  1. Loosen the liftgate hinge installation bolts and adjust the liftgate.
  2. Tighten the liftgate hinge installation bolts. (See LIFTGATE REMOVAL/INSTALLATION .)
  3. If the liftgate does not open/close smoothly, adjust it by loosening the liftgate lock striker installation screw. (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)
  4. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
