Liftgate Hinge Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate (See LIFTGATE REMOVAL/INSTALLATION .)
    3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(US)] .)
    4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    5. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    6. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    7. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    8. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    9. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    10. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    11. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts.

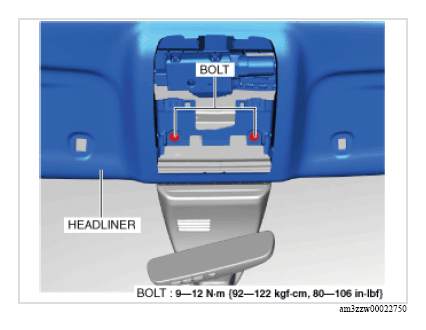

    Fig 1: Headliner And Bolts With Torque Specification
    G13178582Courtesy of MAZDA MOTORS CORP.
  4. Disconnect rear washer hose B.
    G13178583Courtesy of MAZDA MOTORS CORP.

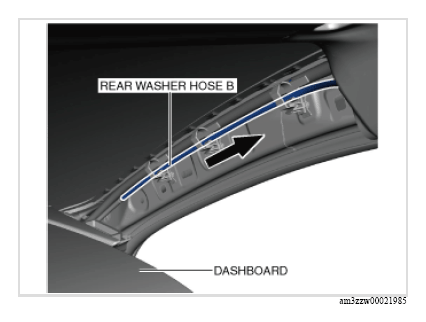

  5. Pull the roof wiring harness and rear washer hose B in the direction of the arrow shown in the figure and pull them out.
    G13178584Courtesy of MAZDA MOTORS CORP.

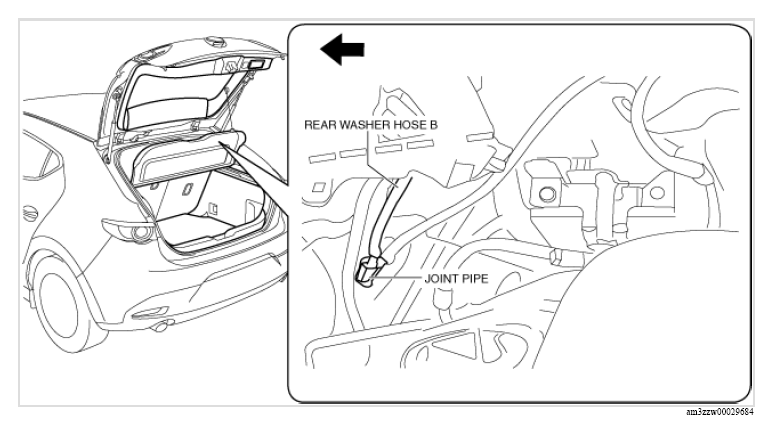

  6. Disconnect rear washer hose B from the joint pipe.
    G13178585Courtesy of MAZDA MOTORS CORP.

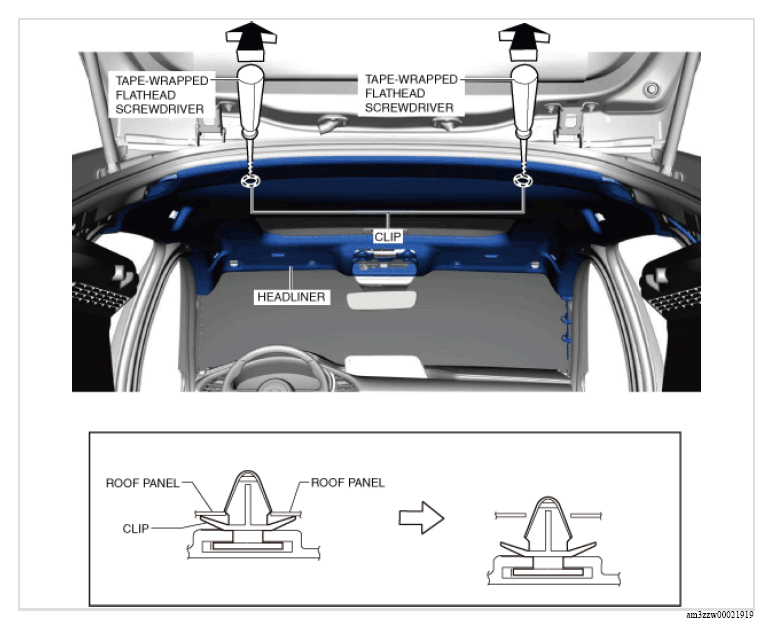

  7. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and detach the clips.
    G13178586Courtesy of MAZDA MOTORS CORP.

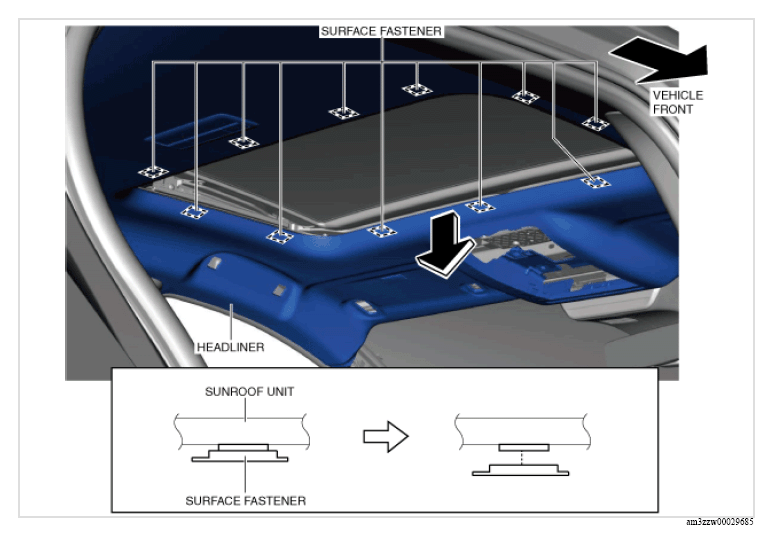

  8. Move the headliner in the direction of the arrows shown in the figure and detach the surface fasteners from the sunroof unit. (with sunroof system)
    G13178587Courtesy of MAZDA MOTORS CORP.

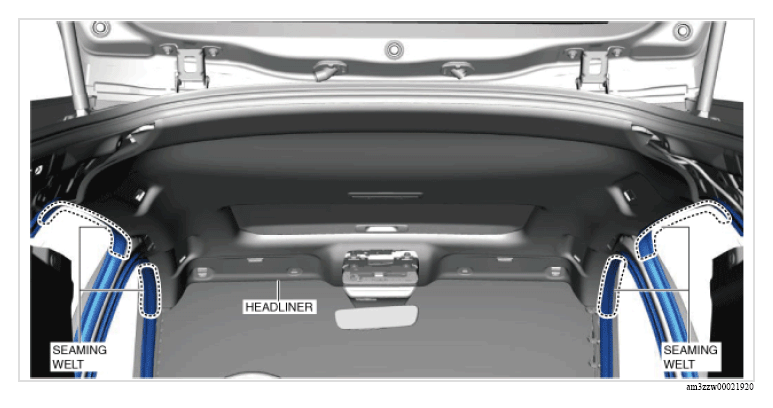

  9. Partially peel back the seaming welts.
    G13178588Courtesy of MAZDA MOTORS CORP.

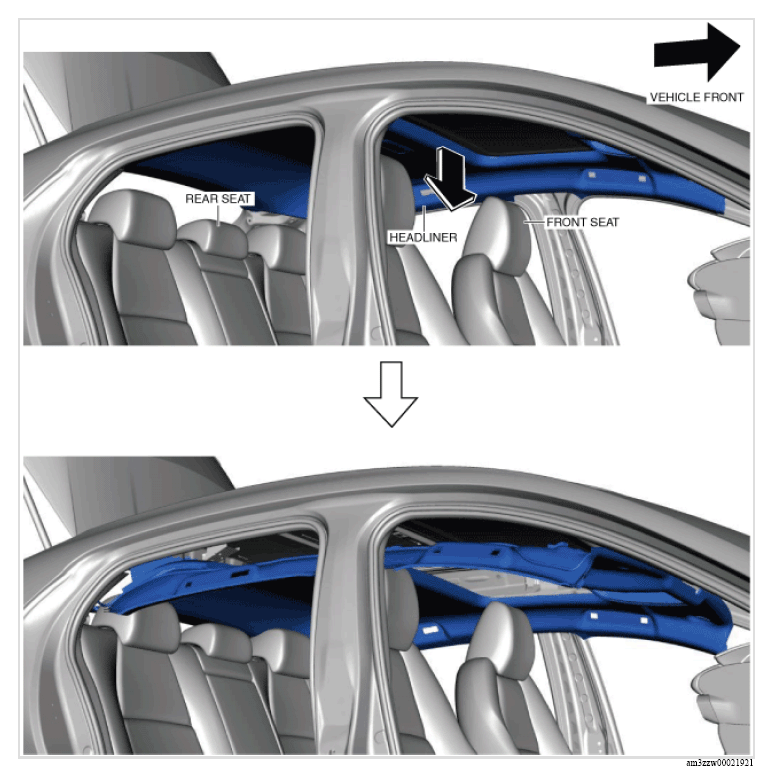

  10. Move the headliner in the direction of the arrow shown in the figure and set it on front seats and rear seats.
    G13178589Courtesy of MAZDA MOTORS CORP.
  11. Remove the nuts.

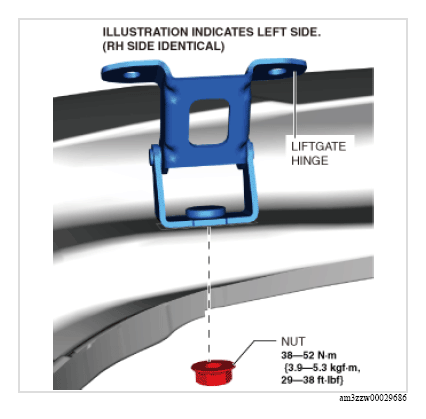

    Fig 2: Liftgate Hinge And Nut With Torque Specification
    G13178590Courtesy of MAZDA MOTORS CORP.
  12. Remove the liftgate hinges.
  13. Install in the reverse order of removal.
  14. Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)
