Stay Damper Installation Note

  1. If the stay damper is to be reused, perform the following procedure:
    1. Remove the packing remaining on the stay damper.

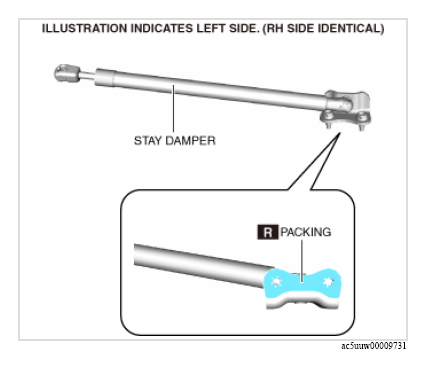

    2. Adhere new packing to the position shown in the figure.
      G13178602Courtesy of MAZDA MOTORS CORP.
