Foot Support Removal/Installation

  1. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  2. Partially peel back the floor covering.
  3. Remove the fastener.
    G14583939Courtesy of MAZDA MOTORS CORP.

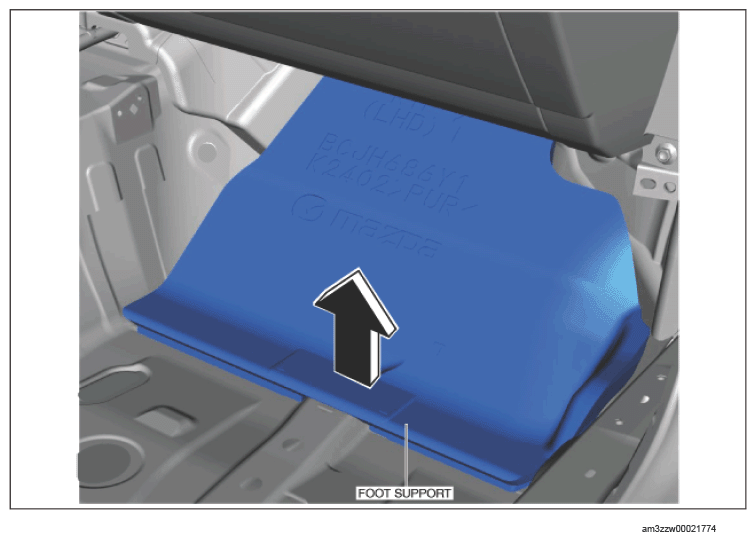

  4. Remove the foot support in the direction of the arrow shown in the figure.
    G14583940Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
