Rivet Installation Note

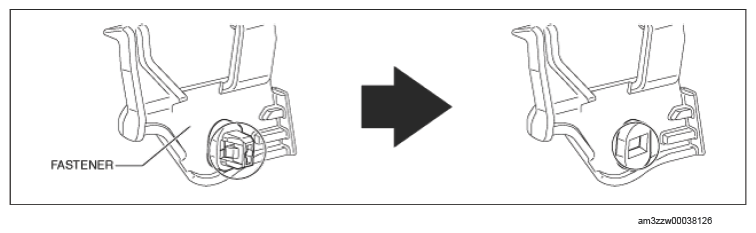

  1. Cut off the area shown in the figure.
    G14583056Courtesy of MAZDA MOTORS CORP.

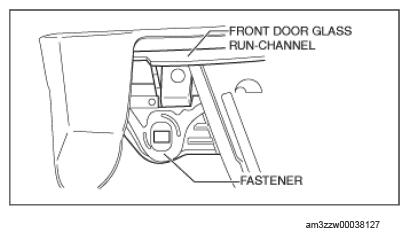

  2. Install the fastener to the front door glass run-channel.
    G14583057Courtesy of MAZDA MOTORS CORP.

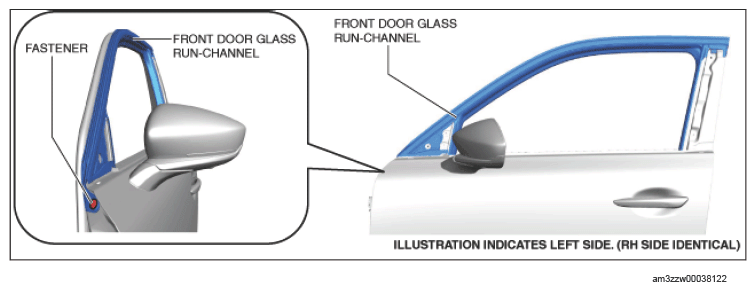

  3. Install the fastener.
    G14583058Courtesy of MAZDA MOTORS CORP.

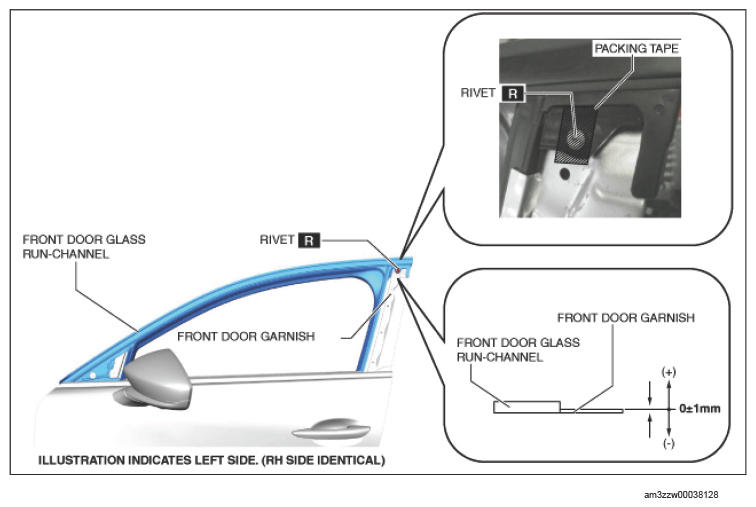

  4. Verify that the difference in level between the front door garnish and the front door glass run-channel is within the range shown in the figure.
    G14583059Courtesy of MAZDA MOTORS CORP.
  5. Install the rivet.
  6. Apply cloth packing tape to the position shown in the figure.
