Reserve Hose Installation Note

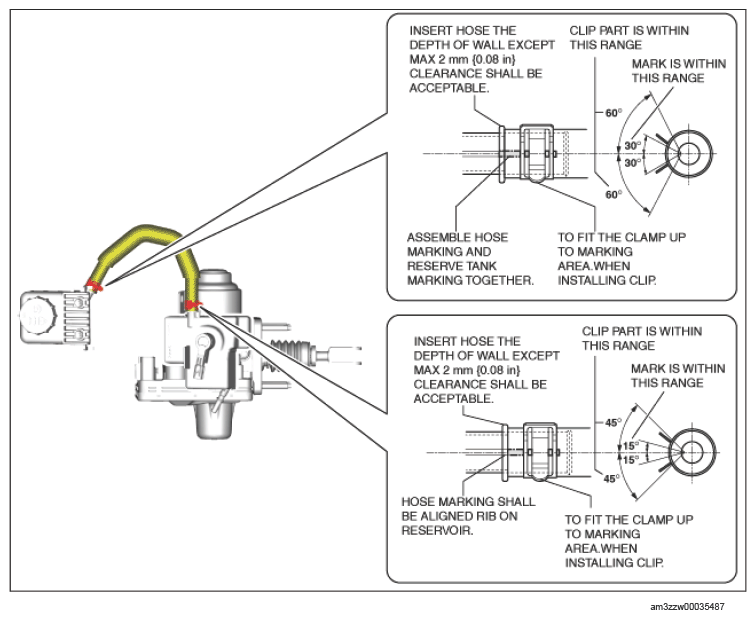

  1. Install the reserve hoses as shown in the figure.
    G14581009Courtesy of MAZDA MOTORS CORP.
