Notification And Warning Speaker Removal/Installation: Front

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the lower column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

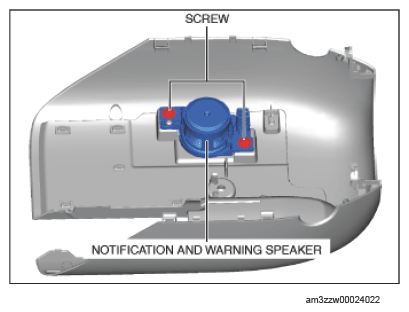

  3. Remove the screws.
    G14584491Courtesy of MAZDA MOTORS CORP.
  4. Remove the notification and warning speaker (front) from the lower column cover.
  5. Install in the reverse order of removal.
