Bolt Installation Note

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

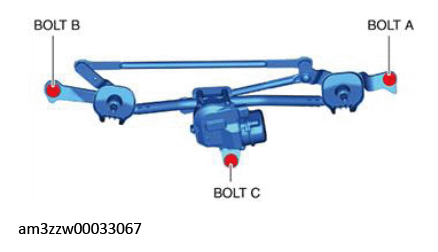

  1. Temporarily tighten bolt A.
    G13179757Courtesy of MAZDA MOTORS CORP.
  2. Completely tighten bolt B.
  3. Completely tighten bolt A.
  4. Completely tighten bolt C.
