Without Position Memory System
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)
- Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- Perform the following procedure.
- Switch the ignition off.
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)

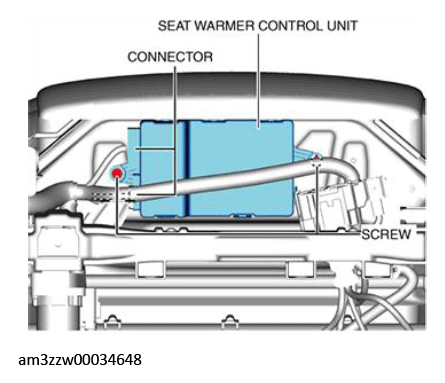

- Disconnect the seat warmer control unit connector.
- Remove the screws.
- Remove the seat warmer control unit.
- Install in the reverse order of removal.
