Steering Angle Adjustment

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the tie-rod end locknuts.
Remove the steering gear boot clamp.
Turn the tie rods.

Courtesy of MAZDA MOTORS CORP.

Standard length L

5.8-18.8 mm {0.23-0.74 in}
Turn the tie rods equally to provide the correct maximum steering angle.
Tighten the tie-rod end locknuts.

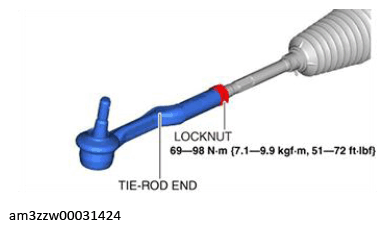

Fig 1: Tie-Rod End Locknut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Verify that the boot is not twisted, and install the boot clamp.
Adjust the toe-in after adjusting the steering angle. (See TOTAL TOE-IN ADJUSTMENT .)
