Console Side Panel Removal/Installation
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the following parts:
- Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
- Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

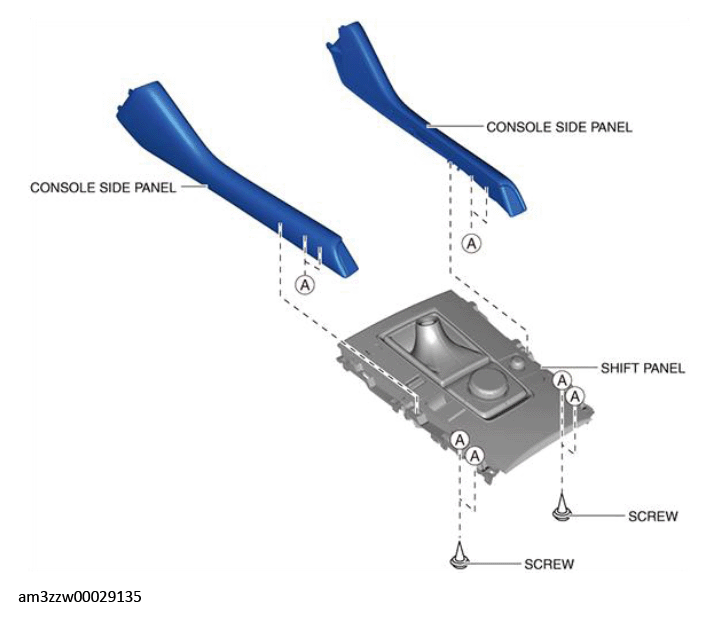

- Remove the screws.
- Remove the console side panel from the shift panel.
- Install in the reverse order of removal.
