Glass Panel Removal/Installation: Notes

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the sunshade.
Fully close the glass panel.
Remove the screws.

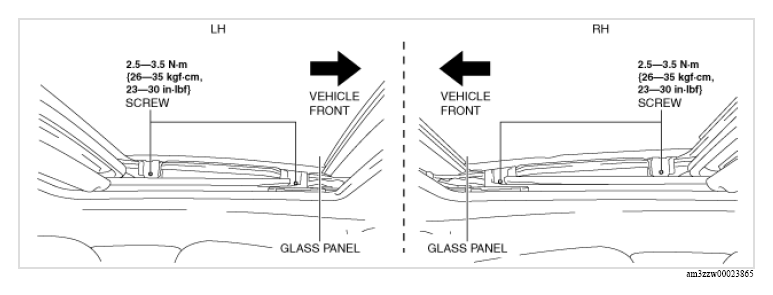

Fig 1: Glass Panel Screws With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the glass panel in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Partially peel back the weatherstrip from the glass panel. (See WEATHERSTRIP INSTALLATION NOTE .)
Install in the reverse order of removal.
