Front Guide Disassembly Note
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and the part may be damaged.

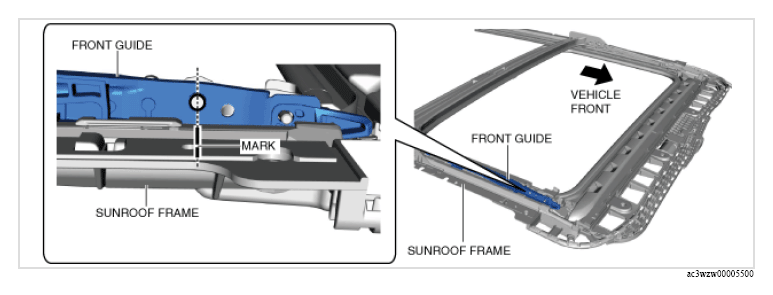

- Mark the position shown in the figure for correct positioning.
 Courtesy of MAZDA MOTORS CORP.
|
