Sunshade Disassembly Note
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When removing the sunshade, the sunshade handle could interfere with the sunroof frame and cause part damage.

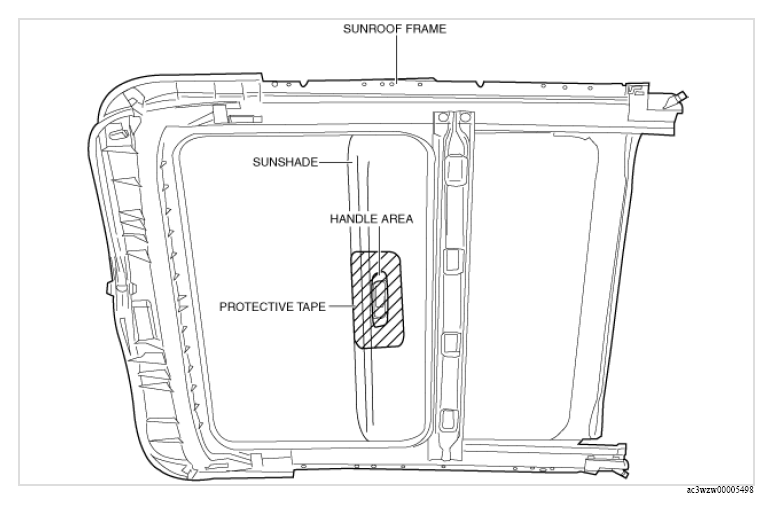

- Affix the protective tape to the position shown in the figure to prevent scratches and damage.

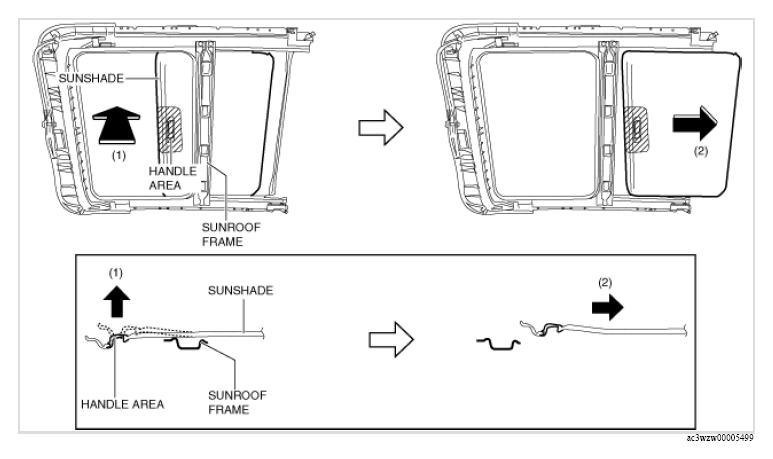

- Remove the sunshade while lifting it up in the direction of arrow (1) shown in the figure and sliding it in the direction of arrow (2).
