Structural View (Interior)

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

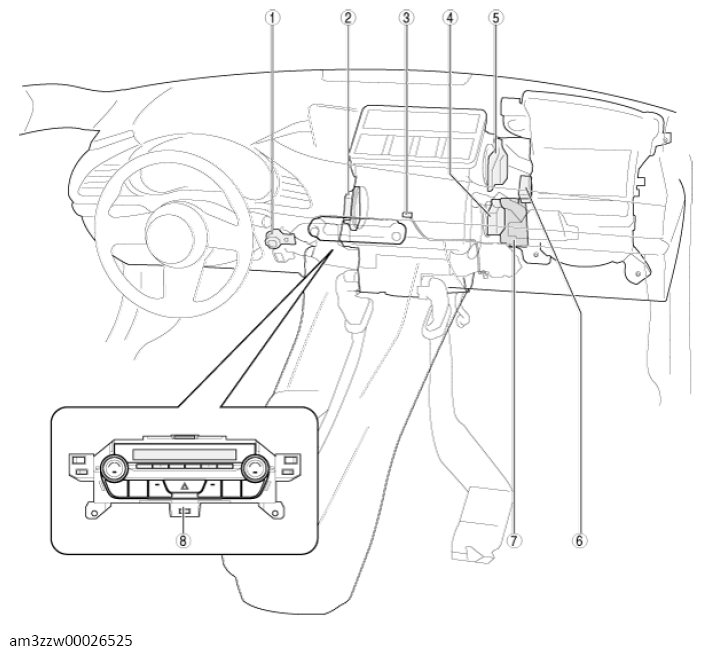

PART DESCRIPTION

1	Passenger compartment temperature sensor (See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) (US) .) (See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION (AUTO A/C) .)
2	Driver-side air mix actuator (See AIR MIX ACTUATOR REMOVAL (AUTO A/C) (US) .) (See AIR MIX ACTUATOR INSTALLATION (AUTO A/C) (US) .) (See AIR MIX ACTUATOR INSPECTION (AUTO A/C) .)
3	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) (US) .) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION (AUTO A/C) .)
4	Passenger-side air mix actuator (See AIR MIX ACTUATOR REMOVAL (AUTO A/C) (US) .) (See AIR MIX ACTUATOR INSTALLATION (AUTO A/C) (US) .) (See AIR MIX ACTUATOR INSPECTION (AUTO A/C) .)
5	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL (AUTO A/C) (US) .) (See AIRFLOW MODE ACTUATOR INSTALLATION (AUTO A/C) (US) .) (See AIRFLOW MODE ACTUATOR INSPECTION (AUTO A/C) .)
6	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) (US) .) (See AIR INTAKE ACTUATOR INSPECTION (AUTO A/C) .)
7	Dash-electrical supply unit (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION (AUTO A/C) (US) .) (See DASH-ELECTRICAL SUPPLY UNIT INSPECTION (AUTO A/C) (US) .)
8	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION (AUTO A/C) (US) .) (See CLIMATE CONTROL UNIT INSPECTION (AUTO A/C) .)
