Side Turn Light Removal/Installation
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the following parts:
- Outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
- Upper outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION (US) .)
- Lower outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION (US) .)
- Side camera. (See SIDE CAMERA REMOVAL/INSTALLATION .)

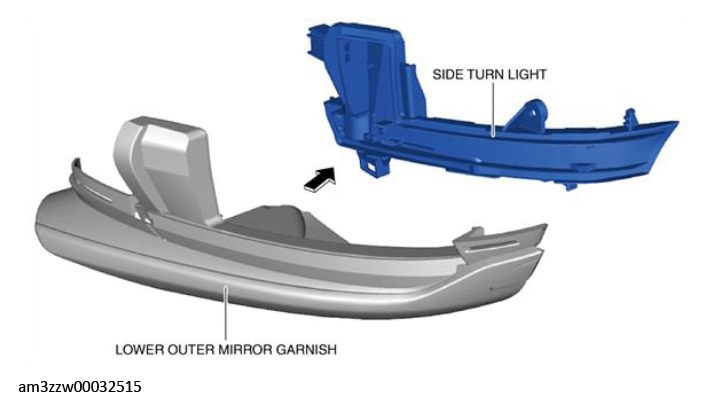

- Pull the side turn light in the direction of the arrow shown in the figure and remove the side turn light.
- Install in the reverse order of removal.
- Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
