Boot Band Disassembly Note

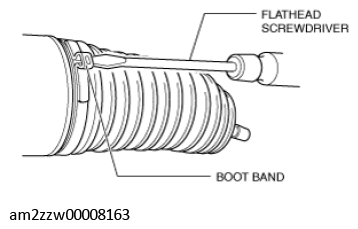

  1. Insert a flathead screwdriver into the crimped part of the boot band, expand the crimped part and remove the boot band.
    G11278900Courtesy of MAZDA MOTORS CORP.
